Changing the Air Filter

Starting with safety:
Chock the front wheels, pull the handbrake and put the car in gear.
I'm sure one jack stand will do but I used 2 jack stands just so I felt better in case my wheeled hydraulic jack failed. Since I had an extra one why not position it too? - just in case. Jack up the car using the proper point. Might be a good idea to loosen the tire bolts a bit before jacking up the car.


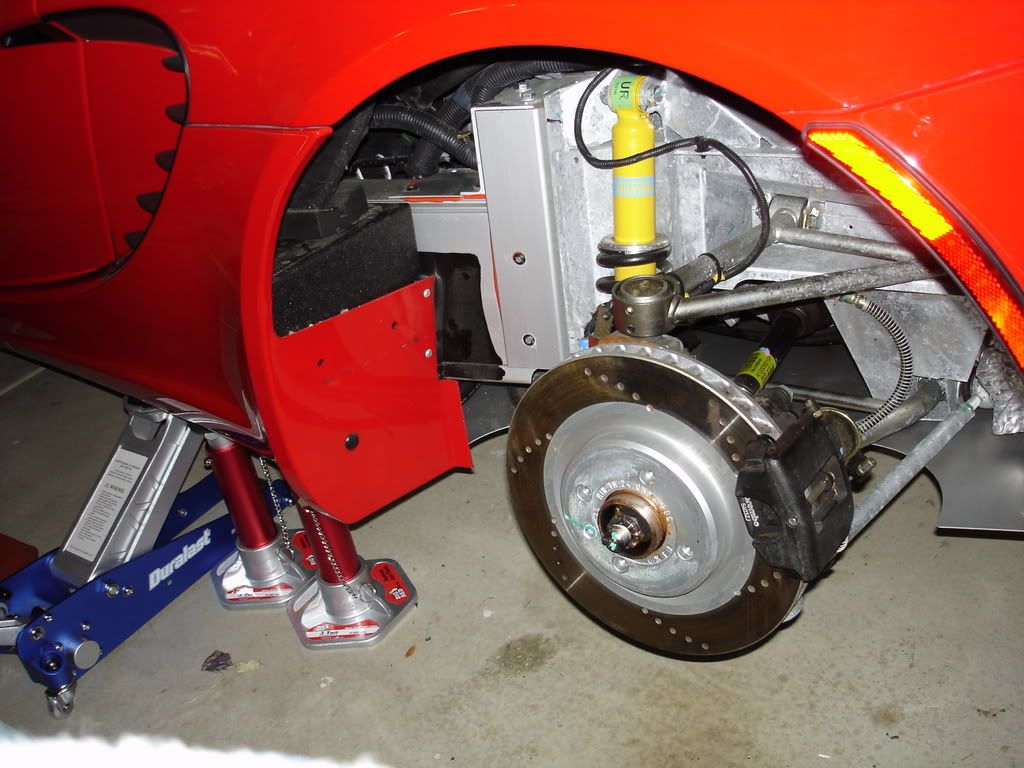

Take the tire off, wheel liner off. I actually took this pic after the whole install (note the K&N sticker affixed):

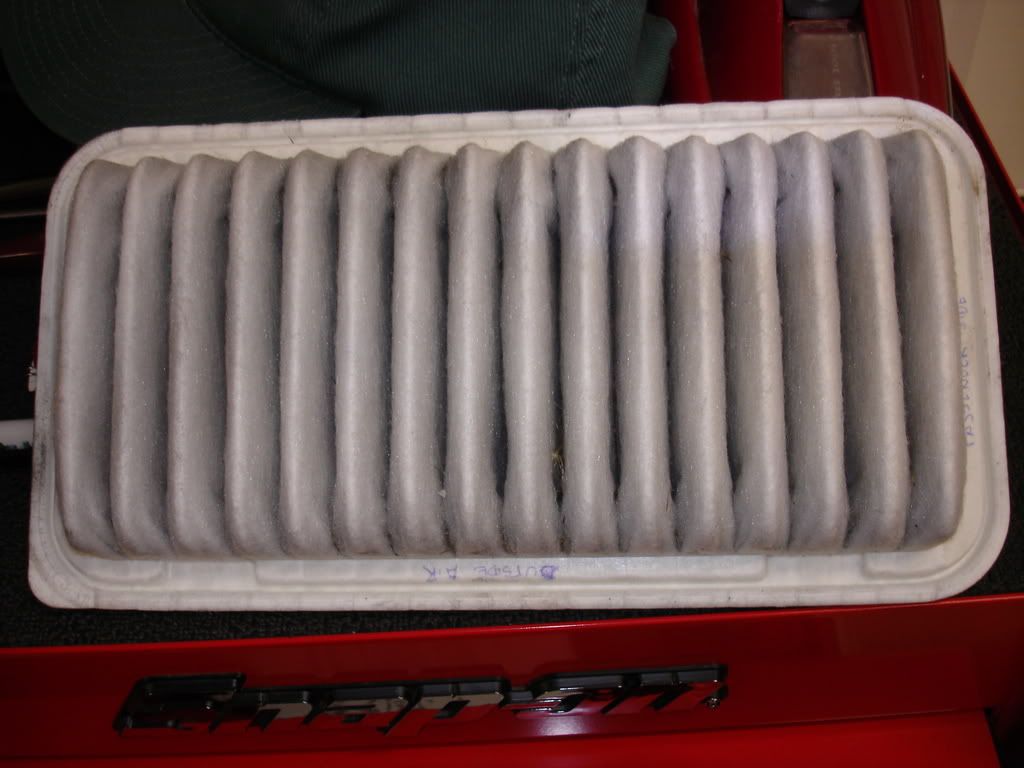

Here is the side of the stock filter facing the outside air, I made some marks on the filter to help with orientation:

edit: Not too much debris eh? I still vacuumed out the airbox for leftover debris.

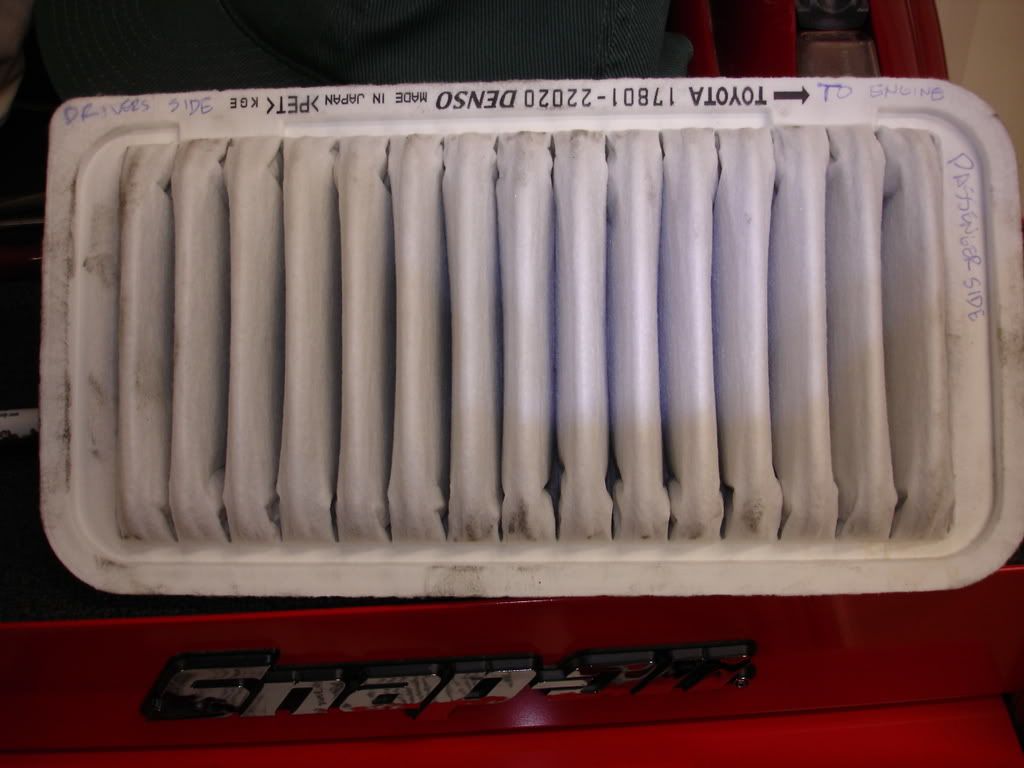

Here is the side that will face towards the engine, note the upper left details and comare to the K&N:

The picture immediately above shows how the filter should be orientated when your installing it back into the airbox. Notice the writing is upside down on the top portion.

Here is the K&N going into the airbox:


The airbox was not hard to close. Just be sure of the positioning of your air filter and the airbox should close pretty easily, if not, double check your air filter and how it's sitting in the airbox. Especially the far end.


All done. Reverse the procedure and torque your tire bolts to 77 ft-lbs in the proper sequence. I also took time to clean the wheel liner and the back siide of the rims. Yeah, you guessed it, I'm stuck in the garage this winter so I got nothing but time.

'06 Ardent Red Elise - black interior with LSS, Touring, HT, Starshield, Lotus Sport Clutch, Moroso Oil Pan, Ekological HIDs, Lotus Driving Lights, Stebel Horn, Bootie, Razo '06 Pedal mod,Snorkel Delete,Odyssey 680 with s111 bracket.
WOO-HOO!

Last edited by goelise; 12-21-2006 at 06:47 PM.
goelise is offline
Sponsored Links
Advertisement

post #2 of 169 (permalink) Old 12-21-2006, 10:05 AM
Registered User

EliseAtLeast's Avatar

Join Date: May 2005
Location: Basking Ridge, NJ
Posts: 1,783
Thanks for the write up.

Richard

'13 Scion FR-S (Whiteout)
'07 Lotus Exige S (Aspen White) Touring, Traction, Starshield
'95 Miata (Montego Blue)
EliseAtLeast is offline
post #3 of 169 (permalink) Old 12-21-2006, 10:11 AM
Registered User

knucklehead's Avatar

Join Date: Jul 2004
Location: Bend, OR
Posts: 3,958
One note I'd like to add. If you can, try not to seperate the hinges on the engine side of the box. Which is possible if you open the airbox just enough to pull the filter out. This makes assembly MUCH easier.

Also remember that if you are replacing the filter with an OEM filter the Type on the filter should be up-side down or it won't fit.

Jacob
knucklehead is offline

post #4 of 169 (permalink) Old 12-21-2006, 10:11 AM
Registered User

waydui's Avatar

Join Date: Jun 2005
Location: Kirtland, Ohio
Posts: 1,416
Hi El,
Nice write-up and great pics.

Wish I had that before I did mine.

I did, however, remove the snorkel while I was at it. Not exactly easy to remove as there is a "quick rivet" holding it in place on top of the airbox. Had to remove that from the engine compartment side.

Without snorkel, intake makes a lot more noise, sounds good to me. Also, saves about 12 ounces in weight.

Have a good holiday.

Wayne

_______________________
'05 Elise Magnetic Blue, Black, Touring, Hard Top, Star Shield, Stage II Exhaust, Arqray decat pipe, S2 Front Splitter (UK), Sector 111 Rear Tow Hook, Driving Lights, Cup Airbox, Shift-I System, LSS Dampers & Springs, Sector 111 V-Bar, Schroth Profi II 5 point harness, Exige S Probax seats, 1/4 turn undertray screws, Stealth bulbs, BWR SC with PES tune, Innovative engine mounts, SS brake lines.
waydui is offline
post #5 of 169 (permalink) Old 12-21-2006, 10:24 AM
Registered User

dasmoofler's Avatar

Join Date: Oct 2006
Location: SE WI
Posts: 3,162
I had a hell of a time getting the clamps back on - I had to squeeze them using C clamps. Was yours the same?
dasmoofler is offline
post #6 of 169 (permalink) Old 12-21-2006, 10:45 AM
xtn
Registered User

xtn's Avatar

Join Date: May 2006
Location: Texas
Posts: 6,981
I took my snorkle off and couldn't hear any difference.

xtn

2006 McLareghini Bugatterrari, Storm Titanium... installed: air horn, Scroth 4-point ASM harnesses, Sector111 halon extinguisher and mounting bracket, Von Hep exhaust and rear panel delete, Pagid brake pads, red Volks CE28n wheels, Toyo RA-1 tires, Nitron SA coilovers, Sector111 (WorksBell) quick-disconnect steering wheel kit. awaiting installation: Scroth "pull-up" lap belts, Sector111 RTD Brace, Tony's heater bypass mod, and dropped steering rack mounting plates.
xtn is offline
post #7 of 169 (permalink) Old 12-21-2006, 10:54 AM
Registered User

Shaggy's Avatar

Join Date: Oct 2005
Location: Louisville, KY
Posts: 1,042
Quote:
Originally Posted by dasmoofler
I had a hell of a time getting the clamps back on - I had to squeeze them using C clamps. Was yours the same?
The shouldn't be hard to clamp if the airbox is shut correctly. Just fiddle with the airfilter and both sides of the airbox until it shuts. The clamps close tight but are still very easy to do by hand.

I replaced my stock filter with a green filter and removed the snorkel, the car now has a very loud sucking (sounds like a turbo pulling in air) sound on the 2nd cam.

2005 KG Lotus Elise (Gone )
Sector111 Lidbone || Sector111 Front towhook || Sector111 Rear Boomerang towhook || Alpine CDA-9856 & iPod || 111R Decals || Zoom Carbon Fiber Rearview Mirror || Green Filter & de-snorkel || ForcedFed Half Carbon Front Lip Spoiler || ChaseCam window mount

2001 Laguna Seca Blue BMW M3 (the replacement)
Shaggy is offline
post #8 of 169 (permalink) Old 12-21-2006, 11:30 AM Thread Starter
Registered User

goelise's Avatar

Join Date: Mar 2006
Location: Midwest, USA
Posts: 2,822
Thanks EliseAtLeast and Wayne!

i d0n't know dasmoofler, my c clamps was pretty easy to snap back on. I'm had the same experience as shaggy - it was pretty easy to put back on once the airbox was lined up.

Looks like 'closing' the airbox once the new filter is in is the biggest problem for some. Yes, I would check that the hinges from the 2 parts of the airbox are aligned correctly - you'll see that from the engine bay. I had to undo that end to check that the filter seated ok on the far end. I then lined up the hinges as close as I can and it slipped into place easy enough. Pictued and circled below is the tab you should make sure the other half of the airbox (not attached to the snorkel) butts up against as illustrated before you lock the c clamps back in place - the c clamps sould slip back on pretty easily. That is the lower one, the same applies to the upper one too.


After doing this, double check your hinges for alignment again. I guess it would be easier for 2 people or if you have long arms. For one person you'll have to do a bit of double checking your airbox halves alignments but it really is no big deal.


Hope this helps.
Happy Holidays everyone!

'06 Ardent Red Elise - black interior with LSS, Touring, HT, Starshield, Lotus Sport Clutch, Moroso Oil Pan, Ekological HIDs, Lotus Driving Lights, Stebel Horn, Bootie, Razo '06 Pedal mod,Snorkel Delete,Odyssey 680 with s111 bracket.
WOO-HOO!

Last edited by goelise; 12-21-2006 at 12:39 PM.
goelise is offline
post #9 of 169 (permalink) Old 12-26-2006, 01:00 PM
BANNED

Join Date: Jun 2006
Posts: 1,348
Just installed my new Green Air Filter from Blackwatch... Didn't feel like jacking up the car and removing the wheel so I just took the Air sensor off the top disconnected it from the throttle body and I was in business... Prob more frustrating then taking the wheel off but it's a viable option for those of you who are nervous about jacking up the car.
mpsalm is offline
post #10 of 169 (permalink) Old 12-26-2006, 01:37 PM
Registered User

doma's Avatar

Join Date: Oct 2004
Location: Belmont, CA
Posts: 2,343
"The airbox was not hard to close."

Bwahahahahaaa!
Ahem. Sorry.
Glad it worked out for you.
I've cleaned out this filter about 5 times ... it always takes me over an hour to close the box. Yes, I've considered that I might be an idiot ... that the problem might be with me. But if so then why is nothing else in car-dom more frustrating than trying to close this airbox? Yeah, filters seated in the groove and centered. Yeah, it's facing the correct way. Seems I can't get the bottom tooth (facing the engine) of the airbox to slide into place.

Some day, when I get an intake, I'm gonna take this airbox into a field and kill it like those guys in Office Space killed that printer. It's gonna feel sooo good.
