Talking GUIDE: True Clear/Colorless Elise/Exige Side-Turnsignals

Take it easy on me! My first "Guide" for the Elise/Exige. Have a few more en work as well if you enjoy this one. Front LED Turnsignals, LED Running lights, Interior, ect...
The guide on my website: Lotus Elise/Exige Cleared Side turn-signals | TheChazz.com DOWNSHIFT-FLOORIT

2 reasons for this mod:
1) Colorless lighting (Or color of your choice)
2) Additional clearance for LED bulbs to fit

This is a basic guide I wrote to detail the removal of the amber filter from the Lotus Elise and Exige Side-Turn-signals. This both allows for a color change (White in my case) and the use of an LED Bulb ((longer than stock and will not fit with Amber Filter in place)

I forgot to take a picture of the OEM marker illuminated Amber. To see simply activate a turn signal and take a look at the Amber color emitted from the UN-modified lens.

Tools needed:
Plastic Card or Credit card covered in masking tape (to prevent scratching paint)
Small Flat-Head screwdriver
Can of Keyboard Duster
Masking Tape
Rubbing Alchohol
CLEAR 2-part fast cure Epoxy
LED 168 bulbs (color of your choice, Amber or White recommended)
Step 1:
Remove Marker lights by pressing the plastic card against the FRONT of the marker lenses firmly but not to hard. Pry out carefully simultaneously and the marker will "pop" free.




Step 2:
After UN-clipping bulb from harness (Just pry tab away and pull) twist bulb fixture counter clockwise and side bulb out. This will reveal the orange "cap" filter fixed inside the lens.



Using the Flathead screwdriver, from the rear opening of the lens "pry" the amber cap away from the inside of the lens housing carefully causing the cap to "twist" inside the fixture. This will take some fiddling, a dental pick/seal pick may also work.

Step 3:
Now that you have access to the inside of the housing you need the can of duster. With the can UPSIDE-DOWN insert the straw into the lens housing to the side of the amber cap. Spray for 2-3 seconds until the housing is about half full of the liquid nitrogen. Swish the liquid around so that it contacts all of the adhesive holding the clear lens to the black housing. You may hear a POP as the lens breaks free. If not then use the screwdriver to carefully pry the lens away... it should take VERY LITTLE EFFORT. If needed repeat the spray.




Step 4:
Now that you have it apart the Amber cap should fall free, toss it in the garbage. Almost done! Now clean the housing and lens with rubbing alcohol to prep it for re-assembly.

--- DO ONE LENS AT A TIME AS YOU HAVE LIMITED TIME TO MIX and APPLY THE ADHESIVE --- Now mix a SMALL amount of Epoxy and use Q-Tips to apply it quickly to the very edge of the clear lens. Use a SMALL amount so that it does not run on the sides of the lens! Work quickly as the epoxy can dry in just a few minutes.
Re-install the lens onto the housing, and once in place wipe away any excessive adhesive before it drys as its not removable once dry! Then wrap a pice of tape around the lens to hold it in place fore a few minutes while the Epoxy cures.






Step 5:
After 5-10 minutes remove the tape and the lenses should be cured. Blow into the back of the housing where the bulbs go to ensure there are no leaks.
Below is an image of the OEM bulb next to the 5 SMD LEDs I used. You can see how the caps inhibit use of the LEDs because of there additional length.

At this point Install the bulbs into the sockets and test-fit them into your clear lenses!

At this point Plug the sockets back into the harness on the car BUT DO NOT RE-INSTALL THE FIXTURES! TEST THE BULBS FIRST! If they do not Function, flip the bulbs in the sockets as they ARE polarity sensitive! If they still don't work be sure the bulb contacts are not bent out of contact.

Step 6: (Final)
As long as everything functions correctly, Clean the body panel where the lens mates with the car with some quick detail, and simply snap the fixtures back into place! Double test them to ensure function. Enjoy!



Also works well with the LED License plate BulbsAnd flipped inner tails)

TheChazz.com-Freelance Photographer "LIKE" My photography:FB.com/TheChazzCom
05 Elise First Year|Winter Rebuild
| 95' Previa (Mid-Engine)LE AWD S/C
DIY: HID Install | DIY: Clear Side Signals | DIY: Headlight Restore | Composite Worx SP-1 Seat Install
Sold my Elise! R8 up next!
TheChazz is offline
Sponsored Links
Advertisement

post #2 of 10 (permalink) Old 03-08-2012, 07:13 AM
purveyor of lightness

darkSol's Avatar

Join Date: Feb 2004
Location: Leawood, KS
Posts: 4,046
Garage
Nicely done!

Those are the only exterior incandescent bulbs left on my car (besides my Silverstar high beams) so I've got to do this as well...

.
d.a..v...i....d

David Thomas Stewart - [email protected]
2005 Midnight Silver Lotus Elise (www.darksol.com)
388hp (342whp) BOE RevX 1736lbs.
darkSol is offline
post #3 of 10 (permalink) Old 03-08-2012, 07:21 AM Thread Starter
Registered User

Join Date: Aug 2010
Location: Knob Noster, MO
Posts: 511
Garage
Its a big job, 15min MAX!
I have a few spare LED's if you are in need, but wont be in KC for a week or 2.

TheChazz.com-Freelance Photographer "LIKE" My photography:FB.com/TheChazzCom
05 Elise First Year|Winter Rebuild
| 95' Previa (Mid-Engine)LE AWD S/C
DIY: HID Install | DIY: Clear Side Signals | DIY: Headlight Restore | Composite Worx SP-1 Seat Install
Sold my Elise! R8 up next!
TheChazz is offline

post #4 of 10 (permalink) Old 03-08-2012, 07:31 AM Thread Starter
Registered User

Join Date: Aug 2010
Location: Knob Noster, MO
Posts: 511
Garage
Correct info. I just choose to "live on the edge" when it comes to marker light color.
Thanks for the input.
For those who wanna stick to the 100% legal line, doing this mod with Amber LED's will still greatly increase the visibility and overall effect of the lights.

TheChazz.com-Freelance Photographer "LIKE" My photography:FB.com/TheChazzCom
05 Elise First Year|Winter Rebuild
| 95' Previa (Mid-Engine)LE AWD S/C
DIY: HID Install | DIY: Clear Side Signals | DIY: Headlight Restore | Composite Worx SP-1 Seat Install
Sold my Elise! R8 up next!
TheChazz is offline
post #5 of 10 (permalink) Old 03-08-2012, 07:33 AM
Registered User

RoadDad's Avatar

Join Date: Dec 2006
Posts: 9,273
Pick your color wisely.

The US Code of Federal Regulations, Title 49, Volume 5, Chapter V, Part 571, Subpart B (aka Federal Motor Vehicle Safety Standards), Section 571.108, Standard No. 108 (Lamps, reflective devices and associated equipment) requires amber for the (front; red or amber for the rear) turn signals, front side marker lamps and intermediate side marker lamps.

The only white lights (other than headlights) that are permitted are for back up/reverse lights and license plate lamps (which you really want as dim as possible ).
RoadDad is offline
post #6 of 10 (permalink) Old 03-08-2012, 07:36 AM
Registered User

Michael Mann's Avatar

Join Date: Sep 2011
Location: Bay Area, CA
Posts: 742
Garage
Great write-up

05' Lotus Elise Touring/Sport, HT, BWR Supercharger, Turn Signals + Fins delete, 2bular Exhaust, Difflow 5 Diffuser, Nitron Quick Ratio Steering Rack, Sector111 Shifter Reinforcer + Stans DIY, BWR Sway Bar, Moroso oil pan, Twin Coolers, 55w 6k DDM HID's, Rota Torques/R888's, Exige Scoops, Exige Mesh Grills, ReVerie Front Lip, LED Angel Eyes, Braille, S111 Mirror, SS Brake Lines, Custom Stereo

Last edited by Michael Mann; 03-13-2012 at 10:15 AM.
Michael Mann is offline
post #7 of 10 (permalink) Old 03-08-2012, 01:50 PM
shay2nak

shay2nak's Avatar

Join Date: Dec 2003
Location: Calipornia
Posts: 24,900
awesome. i'll have to do this too.

** save ~10 lbs gain 1 hp ** EQ: Y=(190*X) / (1984-X) where Y is (HP) and X is (lbs)

'07 Lotus Exige S310


WTC 2
shay2nak is offline
post #8 of 10 (permalink) Old 03-14-2012, 02:40 PM
Registered User

Michael Mann's Avatar

Join Date: Sep 2011
Location: Bay Area, CA
Posts: 742
Garage

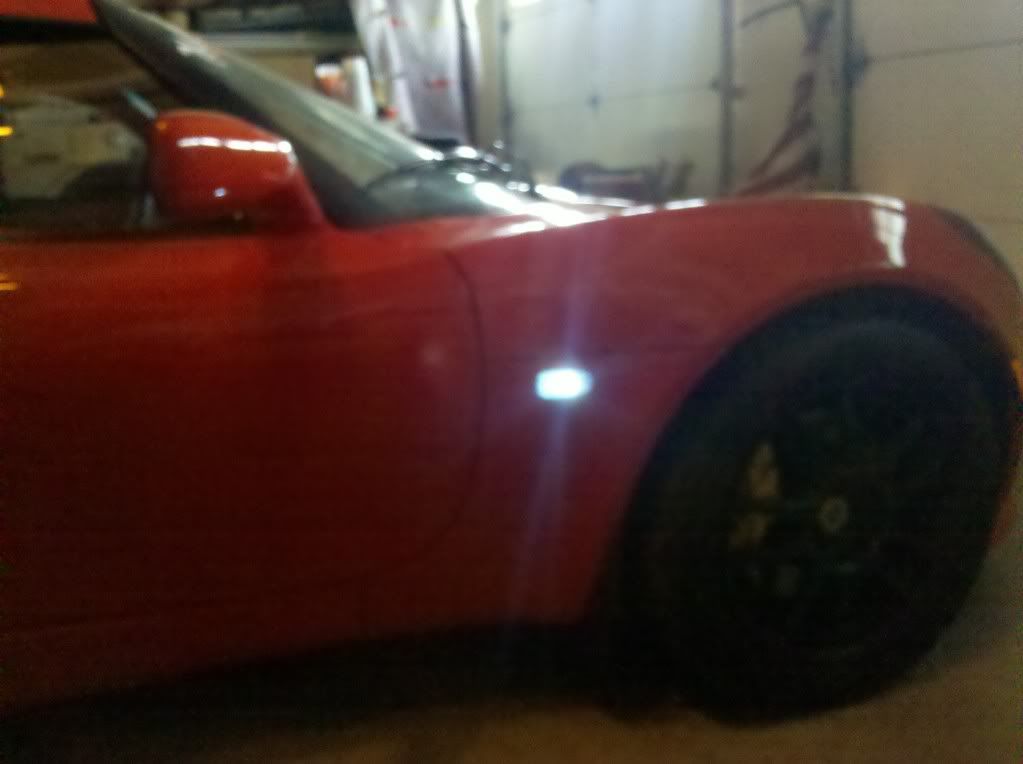

Thanks for the write up Chazz. Somthing easy to do on this rainy CA day. Sucky camera phone

PS Give us a euro taillight conversion write-up for dumbies on the 05' tails. (Full circle light up and the small amber circle blinkers)


05' Lotus Elise Touring/Sport, HT, BWR Supercharger, Turn Signals + Fins delete, 2bular Exhaust, Difflow 5 Diffuser, Nitron Quick Ratio Steering Rack, Sector111 Shifter Reinforcer + Stans DIY, BWR Sway Bar, Moroso oil pan, Twin Coolers, 55w 6k DDM HID's, Rota Torques/R888's, Exige Scoops, Exige Mesh Grills, ReVerie Front Lip, LED Angel Eyes, Braille, S111 Mirror, SS Brake Lines, Custom Stereo
Michael Mann is offline
post #9 of 10 (permalink) Old 03-14-2012, 08:37 PM Thread Starter
Registered User

Join Date: Aug 2010
Location: Knob Noster, MO
Posts: 511
Garage
Anyone got a set of Euro Tails to donate to the cause

I will be working with HouseOfHID.com Saturday to Retrofit there new Lotus-Specific HID kit and make the install guide for that as well. Pretty sweet as they are local to me here. in KC (Both operate and stock there kits in the US woohoo)

Also just ordered a replacement LED for my start button, and Chrome/White bulbs for the front turn-signals.

TheChazz.com-Freelance Photographer "LIKE" My photography:FB.com/TheChazzCom
05 Elise First Year|Winter Rebuild
| 95' Previa (Mid-Engine)LE AWD S/C
DIY: HID Install | DIY: Clear Side Signals | DIY: Headlight Restore | Composite Worx SP-1 Seat Install
Sold my Elise! R8 up next!
TheChazz is offline
post #10 of 10 (permalink) Old 03-14-2012, 08:45 PM
Registered User

Join Date: Dec 2010
Location: San Francisco
Posts: 413
Great write-up!
neurowave is offline
