Discussion Starter #1 (Edited)
Just wanted to share the progress of my dash install. I'm using the brackets made by Brent Bauman. It is a SUPER clean and easy install. You only have to tap 4 wires from the stock cluster harness(+/- power and +/- CAN) and you get you your standard dash functions(fuel level, water temp, rpm, speed,... etc.) Then you can add whichever extra AiM sensors that you like for your setup. The bracket bolts right inplace of the factory cluster using the same 4 holes. There is a different bracket for the 211 but it is also done.

I previously had a racepack G2X data logger and display, a Defi display, and a separate IC temp gauge and have removed all of it in favor of just the dash. It will be MUCH nice to have everything in one place with no extra control boxes mounted to the floor.

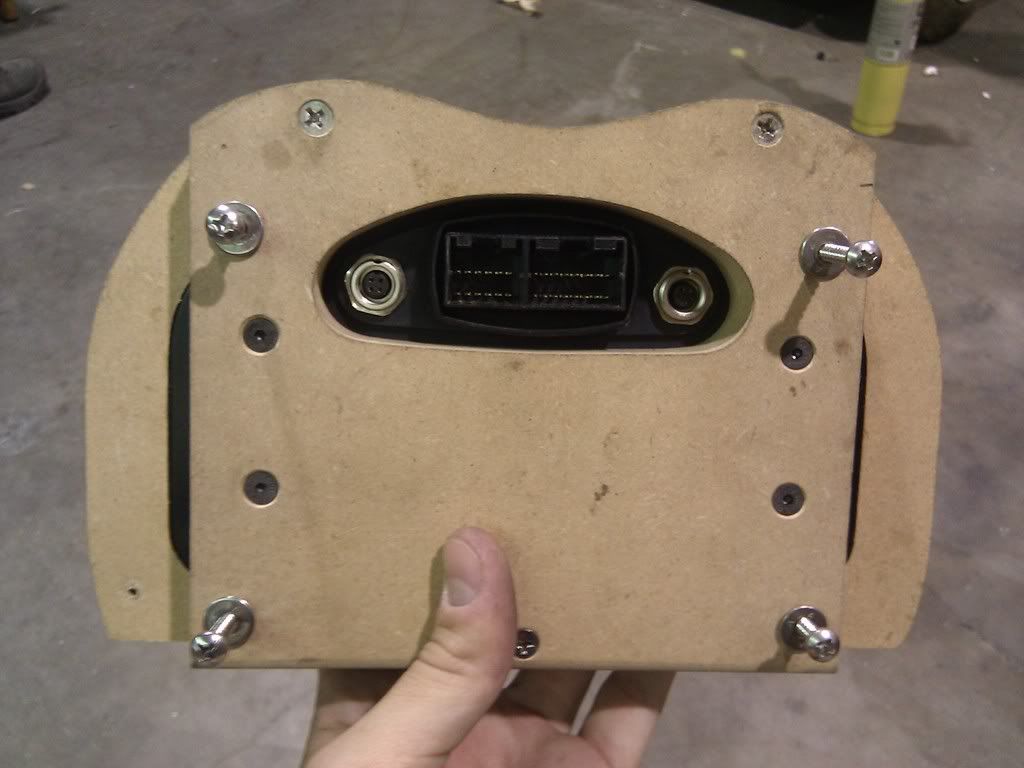

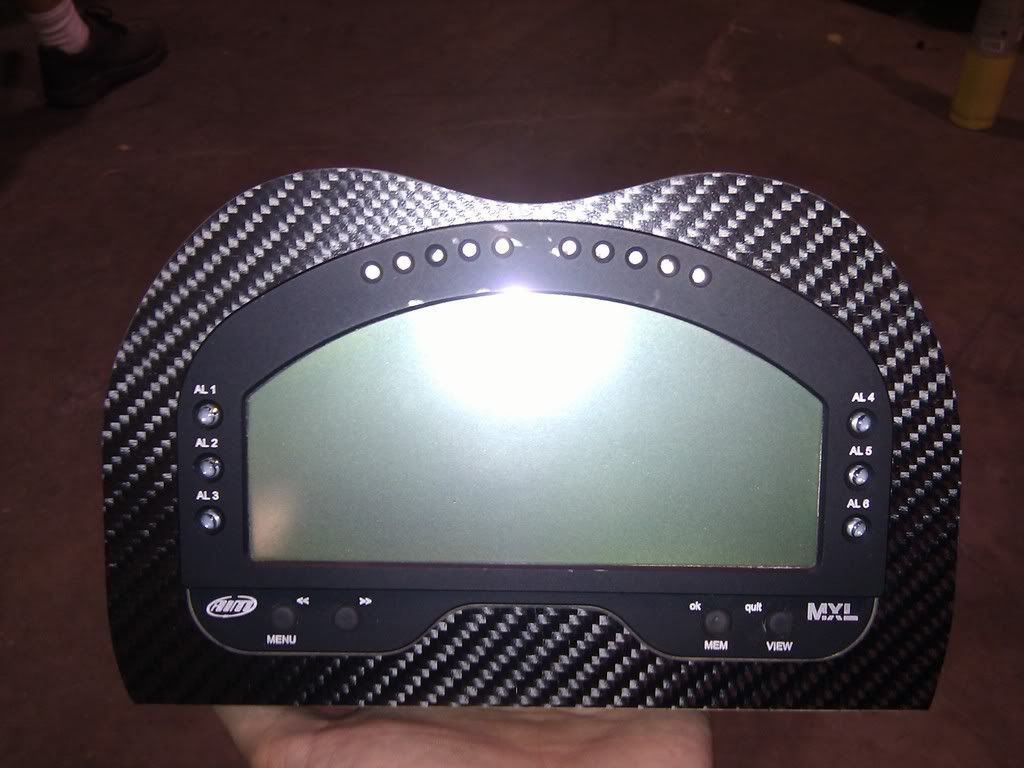

The front and back of the bracket with a carbon veneer:

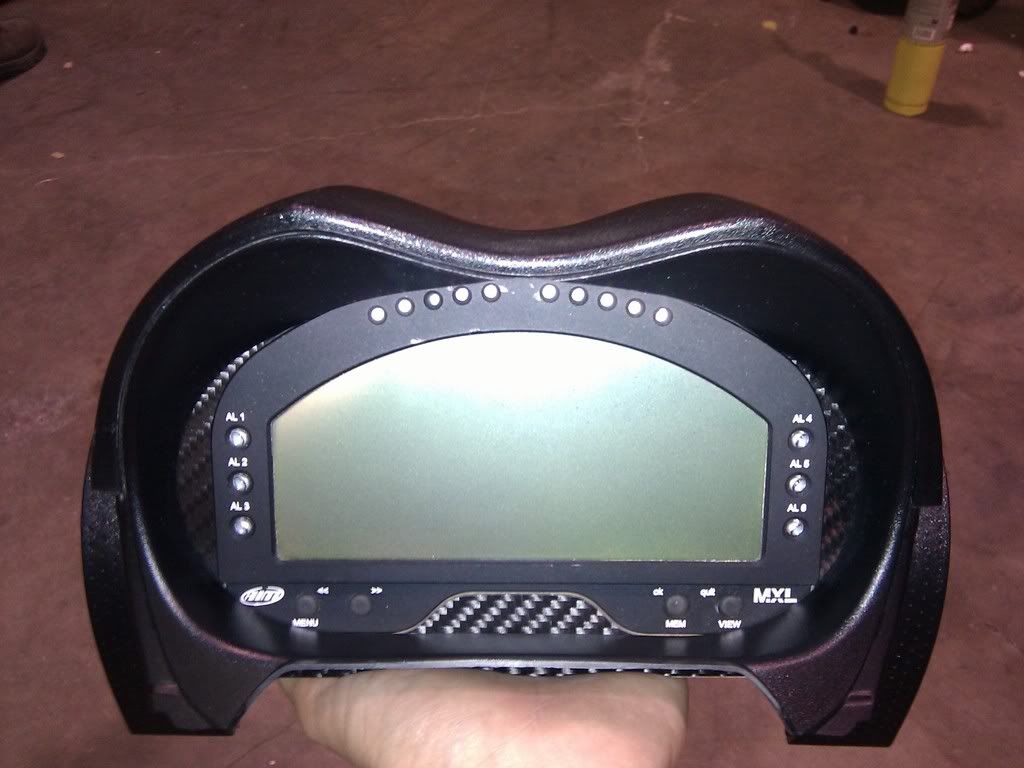

fit into the binnacle:

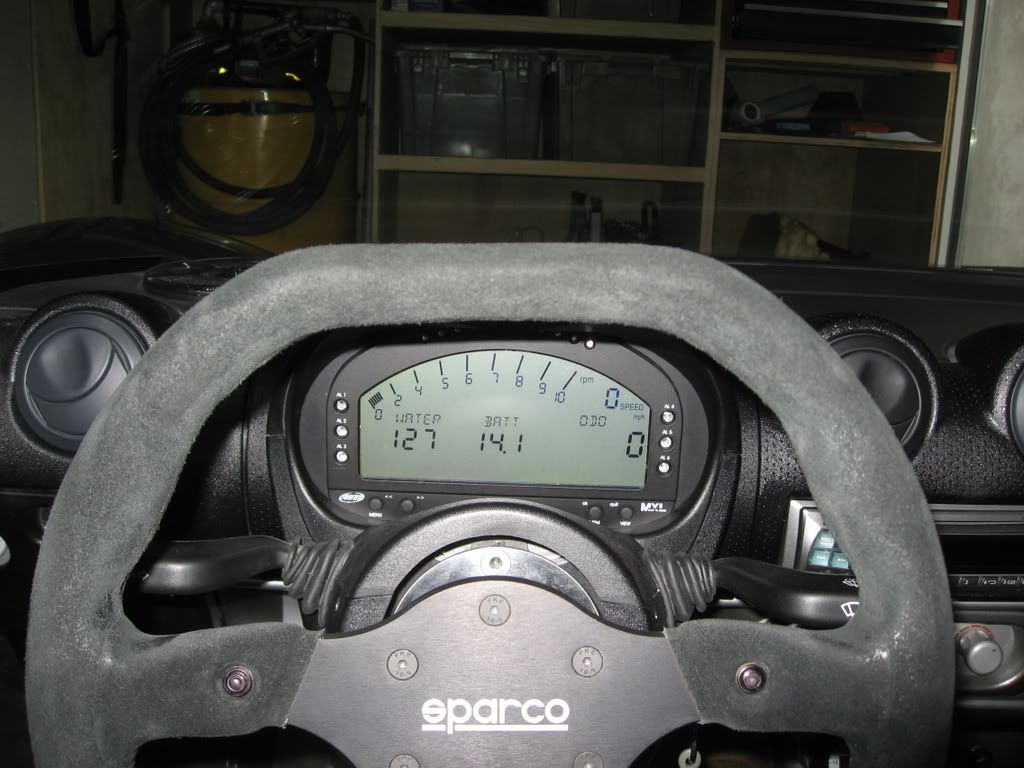

I haven't gotten to installing mine into the dash yet but I will next week. Here is a photo of what it looks like in Brents car. The same bracket:


This is a diagram I put together of the setup I'm going with


·
Registered
Joined
·
159 Posts
Is this back-lit for nighttime driving?

If so, color?

Peace!:)


·
likes to drive fast
Joined
·
1,128 Posts
This is really cool! When is your next track? Might have to see it in person.


·
Registered
Joined
·
3,520 Posts
Discussion Starter #6
This is really cool! When is your next track? Might have to see it in person.
Not sure at the moment, the dash is just one of many changes taking place right now with my car but I'm hoping to get it back out there in the next few weeks.


·
Registered
Joined
·
3,520 Posts
Discussion Starter #8
I dont believe the IQ3 works on the ECU canbus but I'm not certain. If it doesn't then you would need to tap into all of the sensors you need individually instead of just the two wires for the canbus right in the dash plug.


·
Registered
Joined
·
3,520 Posts
Discussion Starter #9

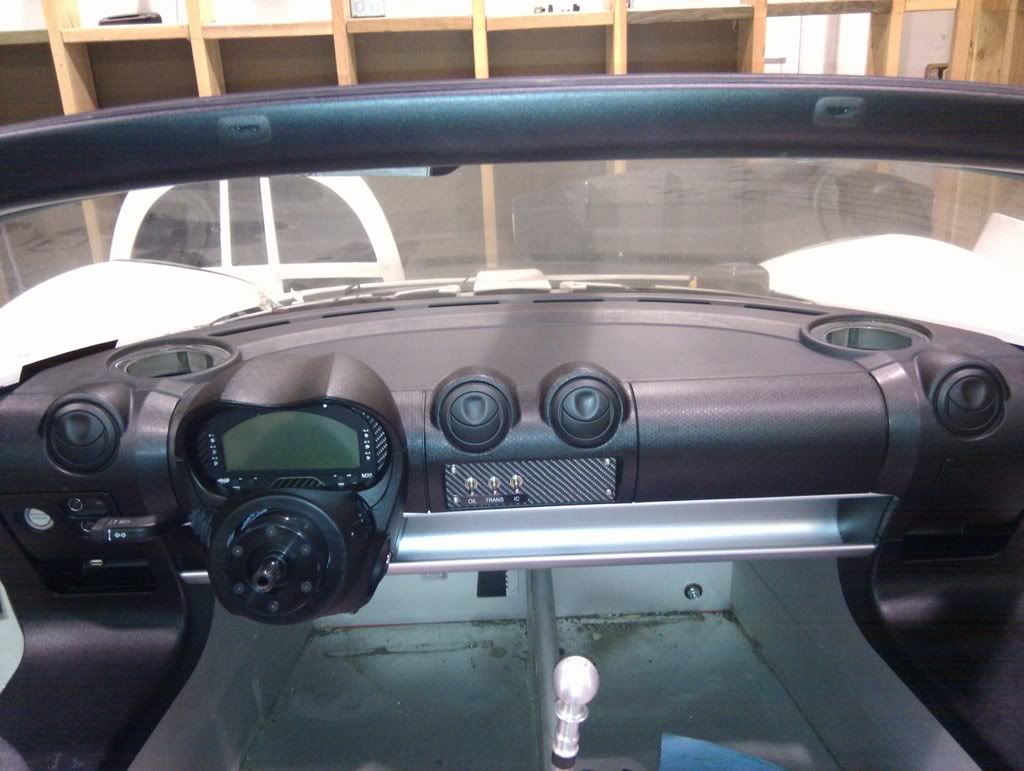

well I finally got my dash all buttoned up so you can see how it looks complete, female USB port is in the cubby on the left for programming the dash and downloading data:


I'll get some better pics with a real camera when I finish cleaning the interior. :D


·
Registered
2008 Exige S240
Joined
·
3,076 Posts
Are there any other gauge manufactures' like Aim that have multiple data inputs in one compact package? I have seen the Zeitronix and Defi offerings.
I would like a very compact digital readout that would fit under the dash or somewhere inconspicuous.

Does the Lotus ECU account for oil pressure/temp and AFR, I assume not but gotta be sure.
-Robert


·
Registered
Joined
·
2,153 Posts
That is VERY clean! I think I just added something to my Christmas list!


·
Registered
Joined
·
3,520 Posts
Discussion Starter #14
Are there any other gauge manufactures' like Aim that have multiple data inputs in one compact package? I have seen the Zeitronix and Defi offerings.
I would like a very compact digital readout that would fit under the dash or somewhere inconspicuous.

Does the Lotus ECU account for oil pressure/temp and AFR, I assume not but gotta be sure.
-Robert
No the stock ECU does not but thats why you just add them to the dash. along with the data it is getting from the ECU....

for the record as well my car now has the EFI x2 ECU in it operating in full standalone mode. Via the serial interface the ECU send 30 channels of data to the dash. Wide band, oil pressure, temps........all go to the ECU and it send it all up to the dash via the serial interface. I am able to log everything in the dash, display whatever I want of that data, and send whatever I want of that data to my smarty cam to be overlayed on my video.

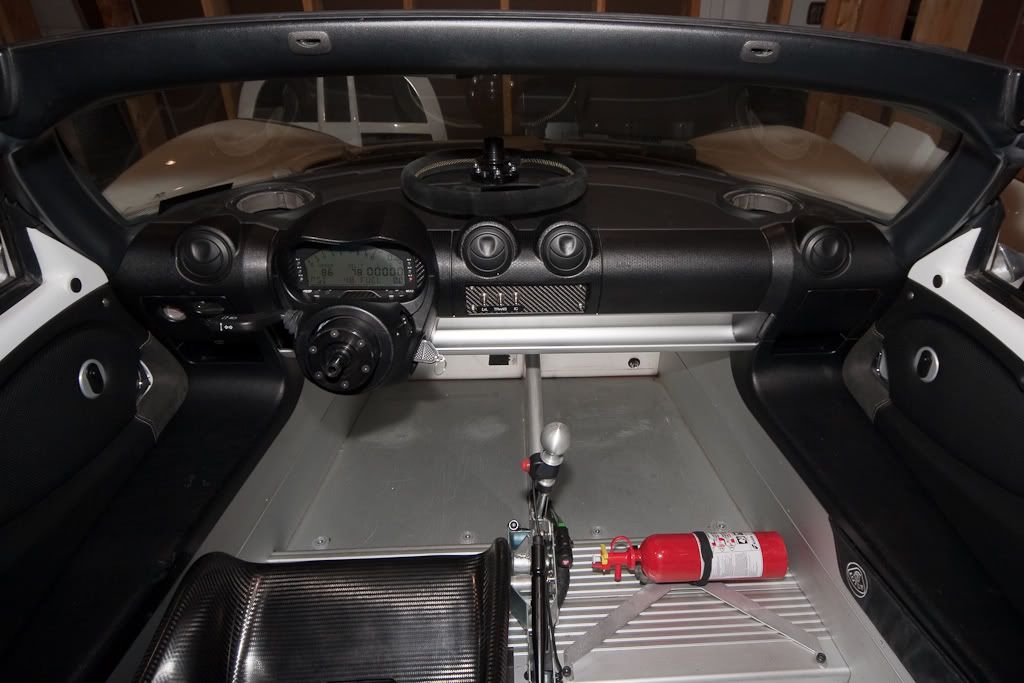

also as promised earlier. cleaned up interior



Defi does make alittle display. I used to have it. It only shows two things at once but takes a few inputs. Its called the Defi Display. I dont know of other options.


·
Registered
Joined
·
2,515 Posts
sweet! are you going to do the GPS option that shows the track you are at?

i was going to get one (racepack) for my ae86 with a haltech e8. direct plug n play with most haltech units. This dash looks like it's from the same company?


·
Registered
Joined
·
1,492 Posts
This is my dream setup.


·
Registered
Joined
·
3,520 Posts
Discussion Starter #17
sweet! are you going to do the GPS option that shows the track you are at?

i was going to get one (racepack) for my ae86 with a haltech e8. direct plug n play with most haltech units. This dash looks like it's from the same company?
I believe haltechs are rebranded racepacks.

My Smartycam has GPS built in which the dash/logger reads for track mapping and speed or whatever.


·
Registered
Joined
·
2,515 Posts
yes, haltech's are racepacks. your aim looks like a racepack... was asking if it was the same company.


·
Registered
Joined
·
3,520 Posts
Discussion Starter #19
yes, haltech's are racepacks. your aim looks like a racepack... was asking if it was the same company.
oh no. They are very much different companies and equipment. They also look quite different if you see them both in person.


·
Registered
Joined
·
2,515 Posts
how come you didn't get the racepak iq3? looks like it has everything built-in for less.
